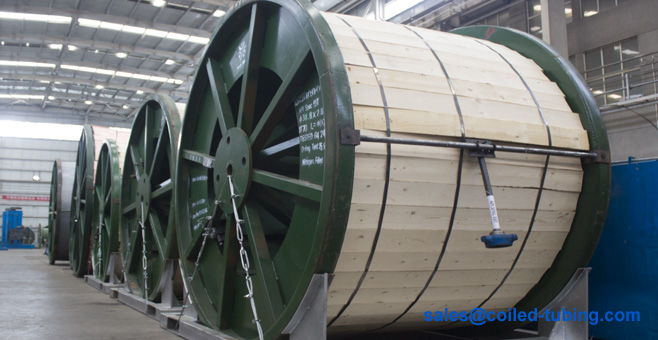

| Coiled Control Line | |
| Material: TP316L/UNS S31603, 2205, 2507, UNS S31803, UNS 32205, UNS S32750, Inconel 625/UNS N06625, Incoloy 825/UNS N08825 | |
| Size: OD 1/8", WT 0.028" 0.035" OD 1/4", WT 0.035" 0.049" 0.065" OD 3/8", WT 0.035" 0.049" 0.065" 0.080" OD 1/2", WT 0.049" 0.065" 0.080" OD 5/8", WT 0.049" 0.065" Other dimensions are available on request. |
|
| TP316L/UNS S31603 Mechanical Properties Tensile Strength: 70,000psi (483MPa) min Yield Strength: 40,000psi (276MPa) min Hardness: 192HBW, 200HV or 90HRB max |
|
| 2205/UNS S31803/UNS S32205 Mechanical Properties Tensile Strength: 95,000psi (655MPa) min Yield Strength: 80,000psi (552MPa) min Hardness: 290HBW or 30HRC max |
|
| 2507/UNS S32750 Mechanical Properties Tensile Strength: 116,000psi (800MPa) min Yield Strength: 90,000psi (621MPa) min Hardness: 300HBW or 32HRC max |
|
| Inconel 625/UNS N06625 Mechanical Properties Tensile Strength: 100,000psi (689MPa) min Yield Strength: 40,000psi (276MPa) min |
|
| Incoloy 825/UNS N08825 Mechanical Properties Tensile Strength: 70,000psi (483MPa) min Yield Strength: 40,000psi (276MPa) min |
|
